Product video
PRODUCT DETAILS
* Suitable for compressing and bagging material in small size;
* Compressing and bagging are completed in one continuous integrated motion, improving productivity and efficiency;
* With weighing and counting function, which can effectively control the bale weight to be consistent and accurate;
* Electric button operate, integrated circuit board control, one button operation, easy and convenient;
* Manually put the packing bag on the outlet before unpacking.
Technical Parameters
| Model | JPW-K5 | JPW-K10 | JPW-K15 | JPW-K20 | JPW-K25 |
| Bale size（W*H*L）mm | 400*300*100 | 400*400*180 | 550*400*250 | 550*450*250 | 600*450*250 |
| Bale weight（Kg） | 5 | 10 | 15 | 20 | 25 |
| Voltage（Customizable）（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 5.5/7.5 | 5.5/7.5 | 5/10 | 7.5/10 | 11/15 |
| Machine size（L*W*H）mm | 2600*1750*1480 | 2660*1760*1550 | 2750*1810*1550 | 2980*2015*1550 | 3210*2330*1550 |
| Machine weight（Kg） | 765 | 815 | 870 | 950 | 1050 |
| Package size（W*H）mm | 400*620 | 580*700 | 650*1000 | 700*1000 | 700*1050 |

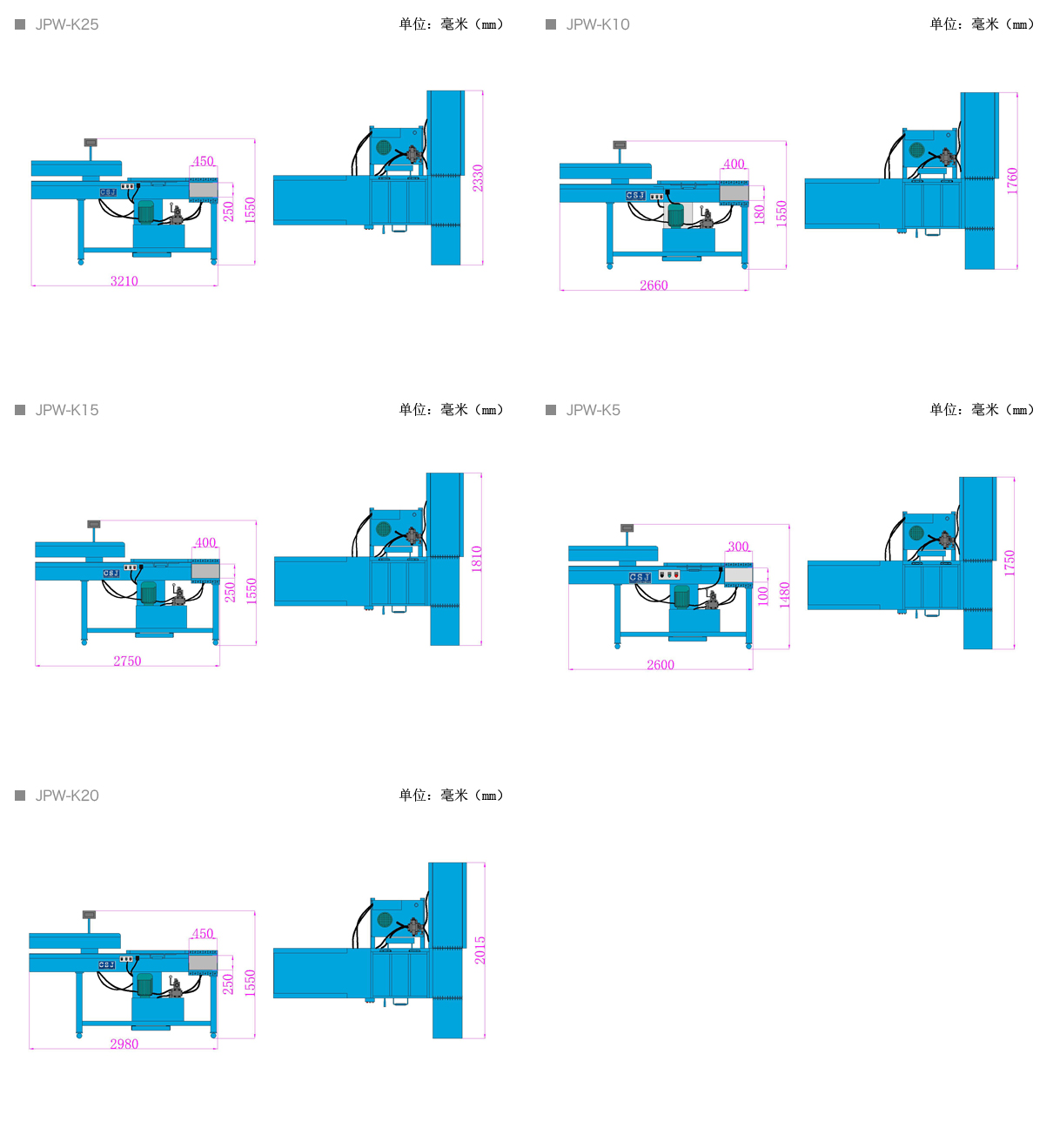

Dimensions
