PRODUCT DETAILS
Suitable for small and medium-sized enterprises, small supermarkets, schools, ships, and other places.

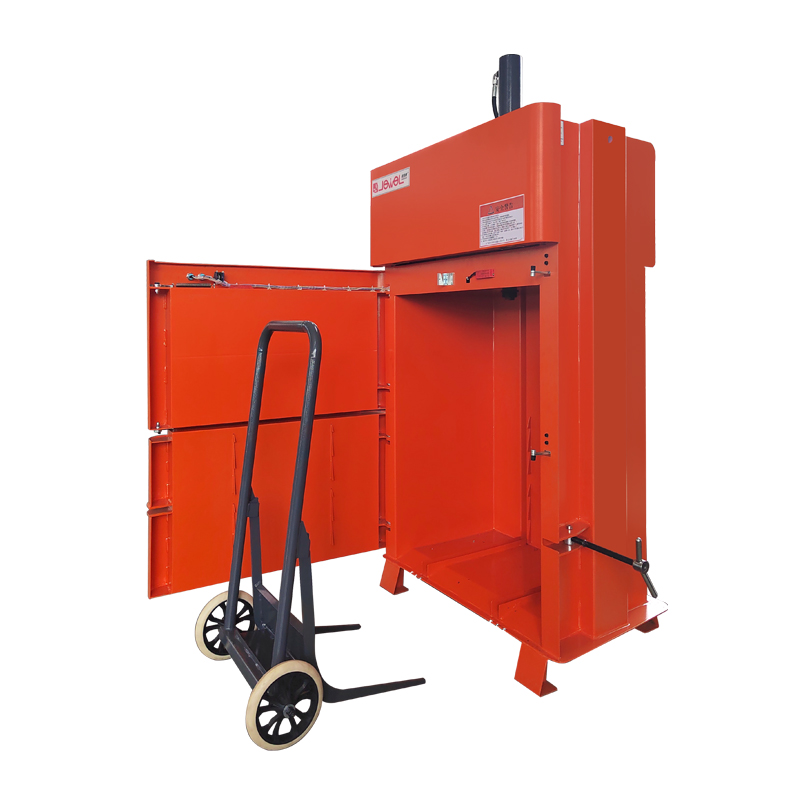

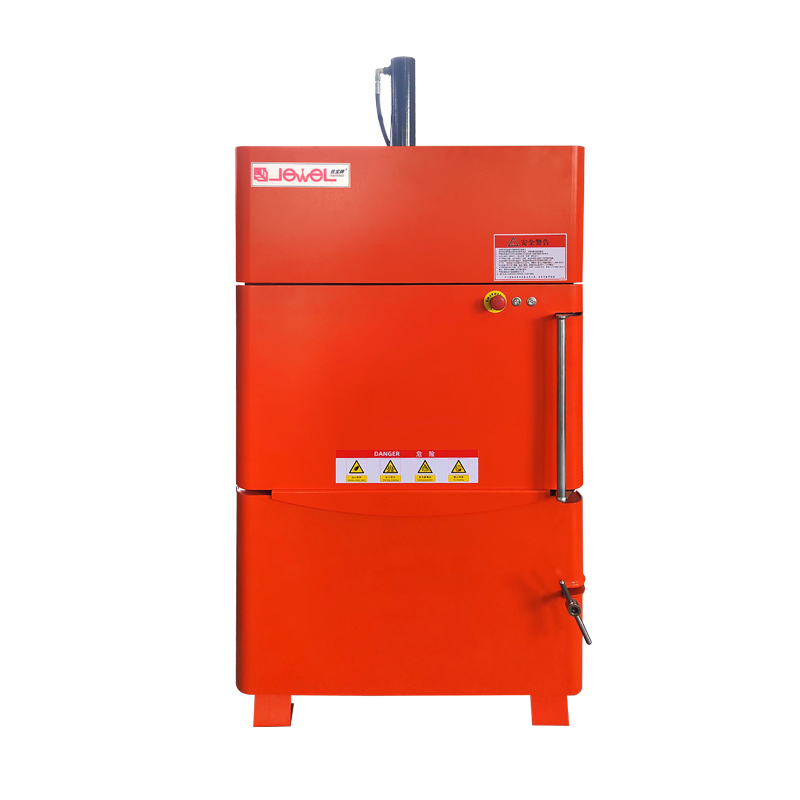

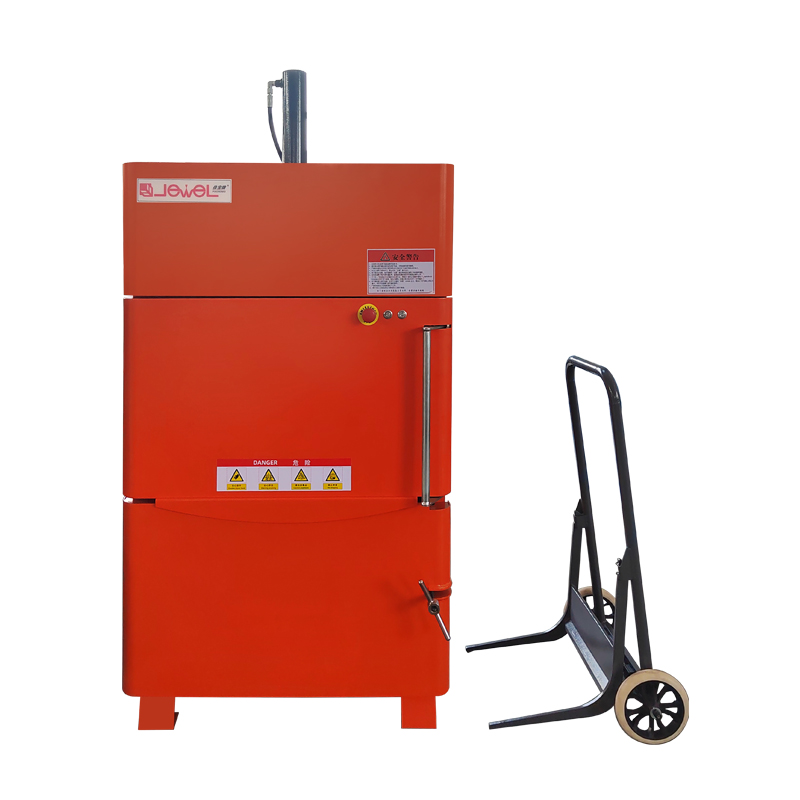

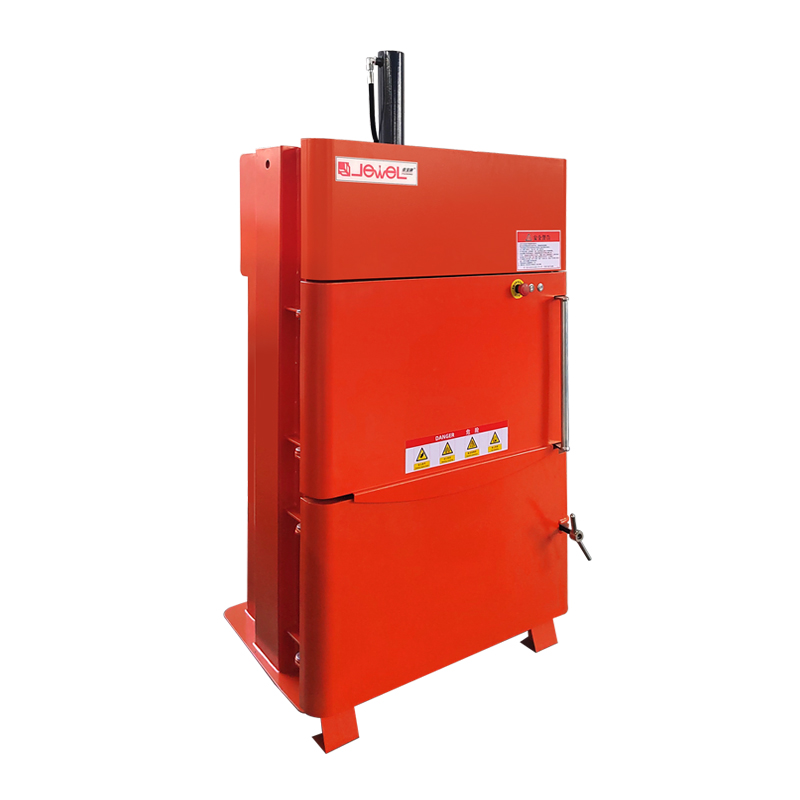

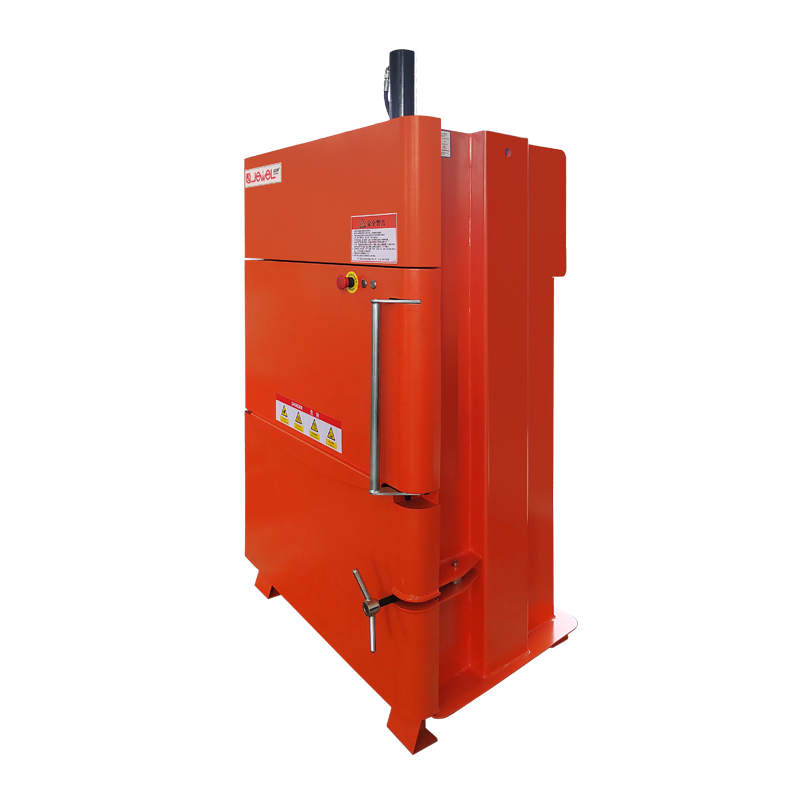

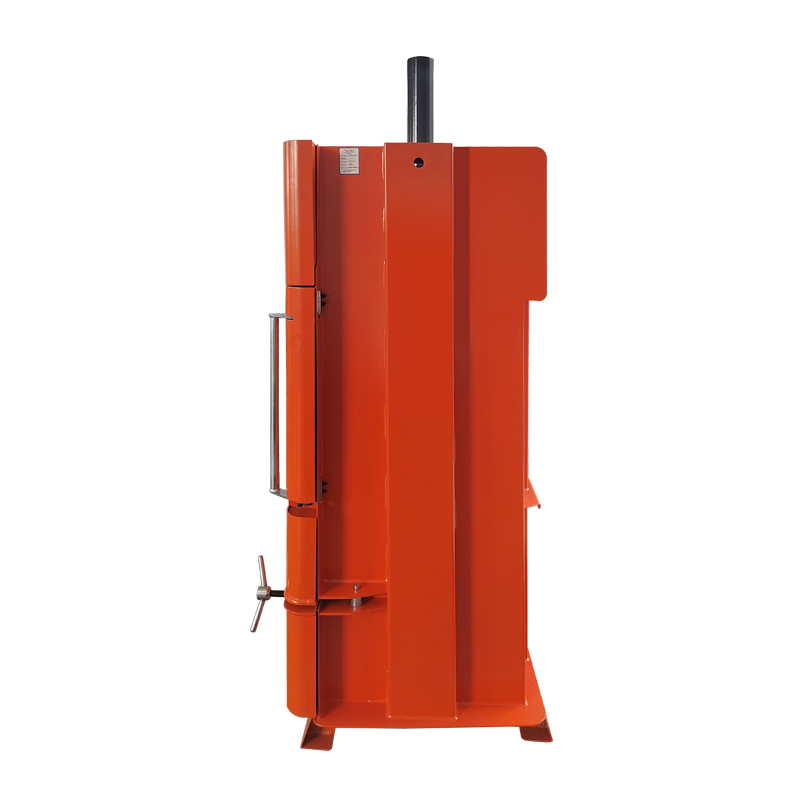

* This small vertical packaging machine is suitable for the recycling of waste paper, carton boxes, and wrapped materials, with a small footprint.
* This machine is equipped with two configurations: hydraulic transmission and electric cylinder transmission. The movement of the electric cylinder is more stable, with full-pressure feedback throughout the process; it is also equipped with a storage box for the binding tape and a blade. The operation is convenient and fast. The binding tape can directly pass through the main door, and it is easy to remove the packaged block by cooperating with the accompanying trolley.
Technical Parameters
| Model | Compression force（Ton） | Bale size（L*W*H）mm | Feed opening （L*H） | Capacity（Bale/Hr） | Bale weight（KG） | Power Kw/Hp | Machine size（L*W*H）mm | Machine weight KG |
| JP-7750T3 | 3 | 770*500*（420-520） | 770*400 | 5-8 | 40-70 | 0.75/1 | 940*700*2130 | 335 |

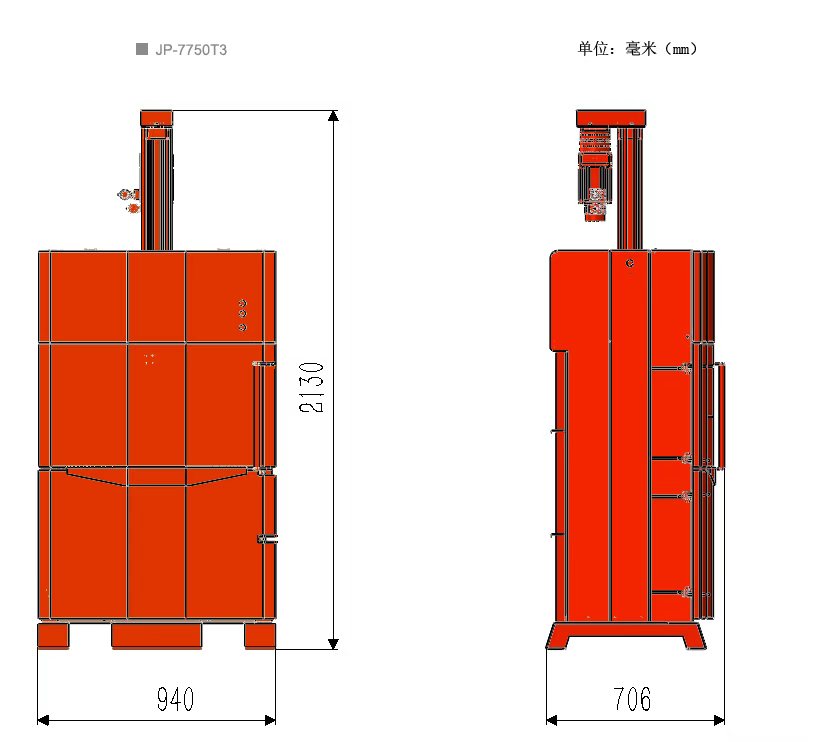

Dimensions
